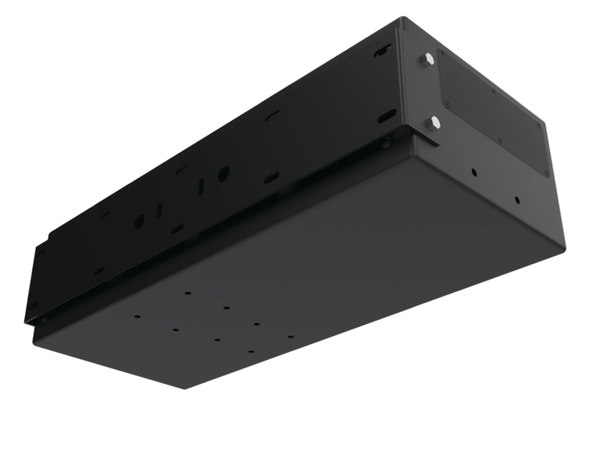

Origin Acoustics PSUB10x2

En elegant og velspillende subwoofer i Pro-serien til Origin Acoustics. Med to kraftige 10" glassfiber basselementer.

Dette er en høyttaler laget for proffmarkedet, og har derfor en bryter for ønsket drift. Den kan enten spille som en vanlig høyttaler i 8 ohm, eller kan seriekobles i en 100 volts sløyfe, typisk brukt på store installasjoner i restuaranter, butikker og kantiner.

SPECS:

• System Type: Dual 10” Bandpass Surface Mount Subwoofer
• Driver Components: 2 x 10” Low Profile, Dual Voice Coil, Rigid Flat Honeycomb Glass Fiber Cone Woofers
• Crossover: Recommended LPF = 120Hz, 24dB, Butterworth
• Frequency Response: 30Hz-160Hz (-10dB), 38Hz-120Hz (+/-3dB)
• Maximum SPL @1m (Free Space): 118 dB Pink Noise, 121 dB Continuous, 123 dB Peak
• System Coverage: 360 degrees
• Sensitivity, 2.83v/1m: 94 dB
• Power Handling: 300W Pink noise, 600W Program, 1200W Peak
• Recommended Amp Power: 300W - 2000W @ 4 Ohms
• Rated Impedance: 4 Ohms
• Input Connectors: Gold Plated Binding Post Terminals
• Enclosure: MDF
• Mounting: Two Position Mounting Bracket, 4 x M10 suspension points
• Transformer Taps 70V: 300W, 150W, 75W
• Transformer Taps 100V: 300W, 150W
• Dimensions (H x W x L): 228 x 350 x 860mm
• Weight: 28,2 kilos
