Conceal C86
8-inch (200mm) 6-element, Dual Panel Invisible Loudspeaker
The flagship of the Series, the JBL Conceal C86 Invisible Loudspeaker is a 3-way, dual panel design, with a separate LF panel and a 5-driver 2-way MF/HF panel. Built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin, the finished loudspeaker panels install easily and disappear completely into the surrounding walls, allowing optimal placement virtually anywhere in a room. The JBL C86 is the ultimate solution for high-performance architectural audio.

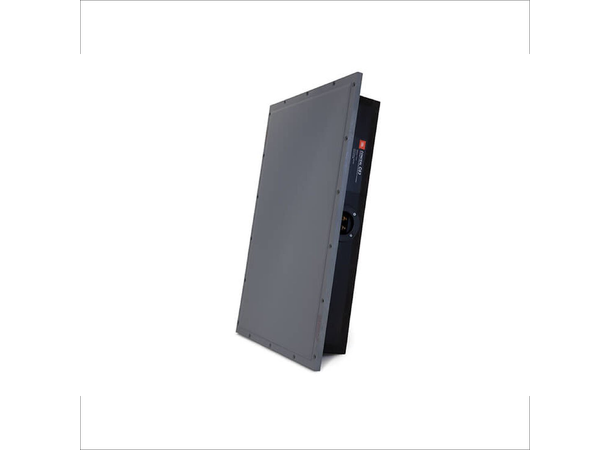

JBL Conceal C86
TWO-PIECE DESIGN WITH 8-INCH (200MM) LF PANEL AND SEPARATE FIVE-ELEMENT MF/HF PANEL
Features
- Two-piece design with 8-inch (200mm) woofer and dual MF/HF transducers
- Proprietary FidelityGlass™ acoustic panel and compression molded baffle
- Custom designed transducers with JBL premium acoustic crossover network

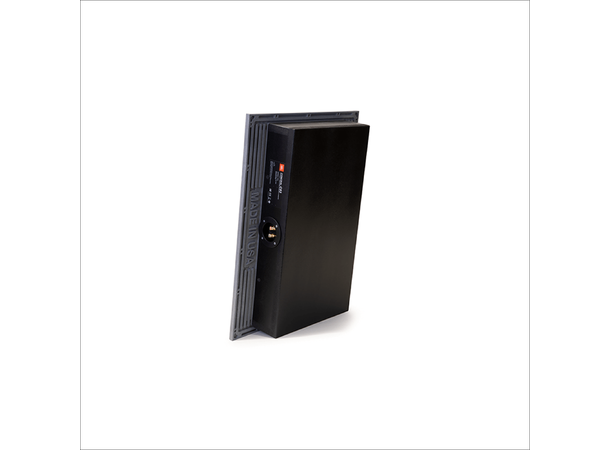

- Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces
- Loudspeaker system installs like a standard drywall patch
- Paintable surface can also be custom finished for complete invisibility
Specs
- Description: 8-inch (200mm) 3-element Invisible
Loudspeaker
- Nominal Impedance: 4 Ohm
- Recommended Amplifier Power: 50 – 200 Watts RMS
- Sensitivity: 84 dB/1W/1m measured in-room
- Frequency Response: 40 Hz – 20 kHz (-6dB) measured
in-room
- Driver Technology: Direct-coupled Transducers (HF/
MF) and Acoustic Levered Cone Woofer (LF)
- Panel Size: 559mm H x 403mm W x 98mm D
