JBL Conceal Series
The JBL Conceal Series combines patented technologies with JBL’s acoustic design to deliver a product that truly disappears into the room. The products in the Conceal Series include a compression molded baffle with a proprietary FidelityGlass™ acoustic panel, an integrated rear enclosure, and advanced transducers and network designs. The products install as easily as a standard drywall patch and feature a paintable surface that can also be custom finished. With a broad hemispherical coverage pattern and no visible components, JBL Conceal Series loudspeakers can be discreetly and optimally located throughout an environment, immersing the listener in great sound that is heard and not seen.

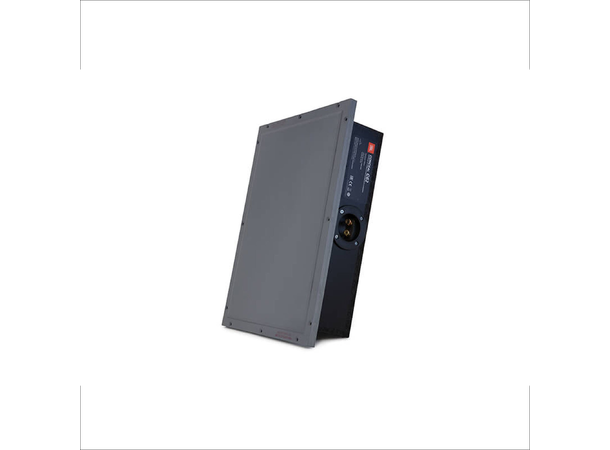

JBL Conceal C82W
Dual-panel, Dual 8-inch (200mm) Invisible Subwoofer System
The JBL Conceal C82W Invisible Subwoofer System is a high-performance 2-panel design built around a patented compression molded baffle and paintable Fidelity Glass™ outer skin. Each panel contains a pair of acoustically coupled 8-inch drivers. The finished loudspeaker panels install easily and disappear completely into the surrounding walls and ceiling, allowing optimal placement virtually anywhere in a house. The JBL Conceal Series is the ultimate solution for high-performance architectural audio.
Features
Dual-panel design each with dual 8-inch (200mm) woofers
Proprietary FidelityGlass™ acoustic panels and compression molded baffles

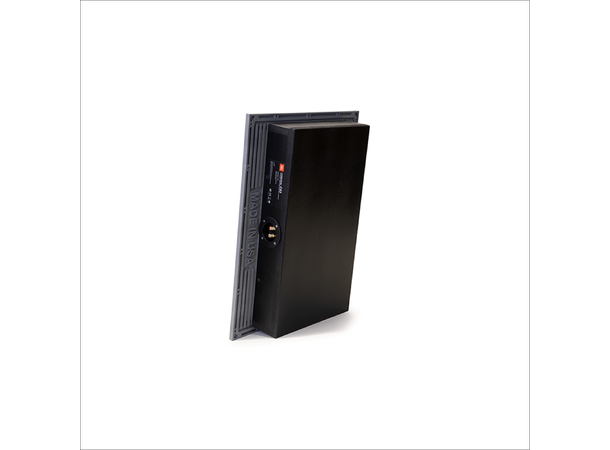

Integrated wooden back box enclosure for reduced acoustic intrusion into adjacent spaces
Loudspeaker system installs like a standard drywall patch
Paintable surface can also be custom finished for complete invisibility
Specs
Description: Dual 8-inch (200mm) Dual Panel Invisible Subwoofer System
Nominal Impedance: 8? (per pair)
Recommended Amplifier Power: 60 – 100 Watts RMS (per panel)
Sensitivity: 86 dB/1W/1m measured in-room
Frequency Response: 30 Hz – 300 Hz (-6dB) measured in-room
Driver Technology: Acoustic Levered Cone Woofers
Panel Size (H x W x D): 762mm H x 403mm W x 98mm D
Packed and sold in pairs
